HSR25R THK滑塊 THK導軌 日本滑塊導軌

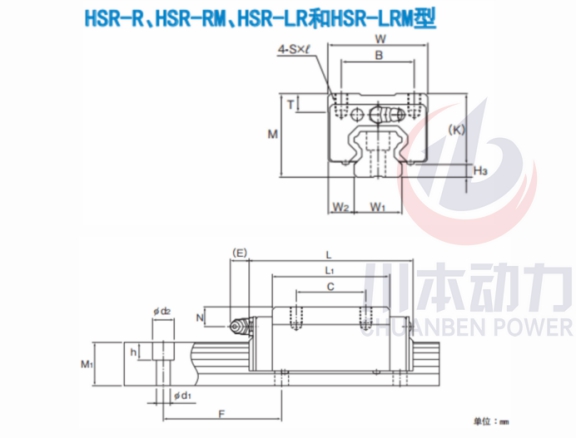

外形尺寸 | 高度M | 40 | mm |
寬度W | 48 | mm | |
長度L | 83.1 | mm | |
LM滑塊尺寸 | B | 35 | mm |
C | 35 | mm | |
S*l | M6*8 | mm | |
L1 | 59.5 | mm | |
T | 9 | mm | |
K | 34.5 | mm | |
N | 10 | mm | |
E | 12 | mm | |
油嘴 | B-M6F | mm | |
H3 | H3 | 5.5 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 23 | mm |
W2 | 12.5 | mm | |
高度M1 | 22 | mm | |
孔距F | 60 | mm | |
d1*d2*h | 7*11*9 | mm | |
長度*Max | 3000 | mm | |
基本動額定載荷 | C | 27.6 | kN |
基本靜額定載荷 | C0 | 36.4 | kN |
靜態容許力矩 | MA單滑塊 | 0.324 | kN-m |
MA雙滑塊 | 1.8 | kN-m | |
MB單滑塊 | 0.324 | kN-m | |
MB雙滑塊 | 1.8 | kN-m | |
MC單滑塊 | 0.366 | kN-m | |
重量 | LM滑塊 | 0.54 | kg |
LM軌道 | 3.3 | kg/m |
